Automatic Rigid Box marker is a good equipment for making high-grade boxes which is featured by fine design, reliable performances and international advanced technologies. It employs PLC, photoelectric detector system, hydraulic rectifying system, HMI to automatically finish feeding and gluing paper, conveying cardboard, forming and gluing four angles of cardboard, positioning and forming box in one time, instead of manual production, greatly improving the production efficiency and quality of rigid boxes.
≤30
boxs / min
It is applicable to make high-grade boxes for cell phones shoes, cosmetics, shirts, moon cakes, liquors, cigarettes, teas, etc.
This fully automatic carton forming machine is the ideal equipment for producing high-end, high-quality cartons with lids and tops. It features a rational design, reliable performance, and world-class technology. It utilizes a PLC programmable controller, photoelectric tracking/image positioning system, pneumatic system, and touch-screen human-machine interface. It automatically feeds tissue paper, glues tissue paper, conveys cardboard, forms and tapes the corners, positions and fits the paperboard, and completes the carton forming process in one operation, effectively replacing manual labor and significantly improving production efficiency and the quality of finished cartons. It is suitable for producing high-end cartons for mobile phones, shoe boxes, cosmetics boxes, shirt boxes, moon cake boxes, wine boxes, cigarette boxes, tea boxes, and other high-end packaging.
1) Full automatic feeder of paper. Pre stacking function, maximum stacking height 700mm.
2) Hot melt adhesive automatic circulation, mixing and gluing system (glue viscosity system can be selected).
3) The hot melt adhesive tape automatic conveying and slitting device can complete the corner pasting of the cardboard inner box at one time.
4) A vacuum suction fan is arranged below the conveyor belt to control the glued paper without relative deviation.
5) The adhesive coated paper and cardboard inner box are equipped with Yamaha YAMAHA robot image positioning and correction device, which can accurately position and fit, with an accuracy of±0.1mm.
6) The carton forming section automatically collects the carton to the forming section according to the carton conveying condition above the conveyor belt.
7) The continuous operation of the carton forming section includes box feeding, edging, ear folding and paper edge folding.
8) The whole machine adopts PLC control, photoelectric tracking system and touch screen human-machine interface to realize the automatic production process of one. time carton forming.
9) Automatic fault diagnosis alarm function.
10) Servo controlled carton forming pressure can effectively eliminate bubbles and improve product quality.
Three camera positioning and mechanical arm clamping box to achieve high-precision positioning.

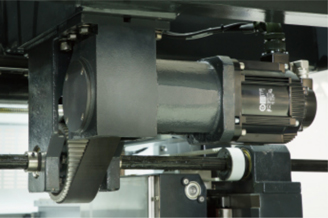

Adopt new design of servo and pneumatic structure to wrap the box, fast digital adjustment of sizes.
New designed servo controlled paper feeder adopts post-sucking pre-pushing type to convey paper which efficiently avoids two pieces of papers entering into the machine.
The copper scraper cooperates with the glue roller by line-touch design which makes the scraper more durable.
The concentrated oil system fully ensures each parts lubricating and the steady running of machine.
Auto glue viscosity meter efficiently adjusts the glue stickiness which ensures the quality of finished products.
Image positioning and robotic arm clamping box achieve high-precision positioning.
Adopt new design of servo and pneumatic structure to wrap the box, fast digital adjustment of sizes.

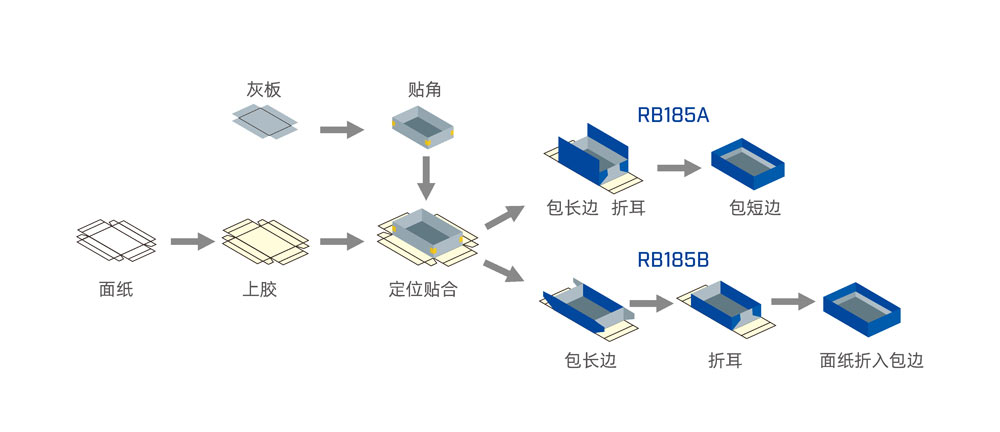

The long and short sides of the carton are wrapped at the same station, which reduces carton turnover and effectively increases the forming speed.
The long and short sides of the carton are wrapped at different stations. When the size or shape of the carton changes, there is no need to replace the push knife and the pressing strip, and the machine can be adjusted quickly.
| Model | RB185B (Intelligent type) |
| Paper Size[AxB] | Min. 95×180mm |
| Max. 610×850mm | |
| Box Size[WxL] | Min 30×60mm |
| Max. 400×600mm | |
| Box Height[H] | 10-140mm |
| Turn In Depth[R] | 10-100mm |
| Folded ear size | 10-200mm |
| Cardboard Thickness[T] | 0.8-3mm |
| Paper Thickness | 100-400g/m² |
| Paper Stacking Height | 800mm |
| Gray board stacking height | 1100mm |
| Precision | ±0.05mm |
| Speed | ≤40pcs/min |
| Motor Power | 20kw/380v 3phase |
| Electric Heating Power | 12kw |
| Air Supply | 50L/min 0.6Mpa |
| Machine Dimension | L7000×W5000×H3300mm |
| Machine Weight | 6300kg |
1.Size Range 0f Double-sided Folded Ear Cover Paper And Gray Plate
2.Size Range Of Cover Paper And Grey Board For Book Cover Boxes [T-type Boxes]
3.Size Range Of Butt-jointed Top And Bottom Cover Paper And Grey Board
4.Size Range Of Beveled Edge Cover Paper And Gray Plate
5.Size Range Of Diagonal Beveled Top And Bottom Cover Paper And Gray Plate
1.The Max. and Min. sizes of the boxes are subjected to the sizes and quality of the paper.
2.The speed of the machine depends on the sizes of the boxes.
3.We don't provide air compressor.
W+2H-4T≤C(Max)
A(Min)≤W+2H+2T+2R≤A(Max)
L+2H-4T≤D(Max)
B(Min)≤L+2H+2T+2R≤B(Max)
