CMD450

Fully Automatic Case Maker Line

CMD450 Fully Automatic Case Maker Line

The high-stability solution for finished, lined hard covers. The CMD450 is an all-in-one line that integrates case making and inner lining in one continuous process.

It uses a reliable Photoelectric Positioning system, perfect for high-volume, long-run production with minimal changes.

Function: Produces a fully-lined cover in a single pass.

Max. Size: 450 x 800 mm

Benefit: Extremely stable and efficient for dedicated production, saving labor.

Applications: Ideal for standard book covers, notebooks, and folders.

Maximum speed of

≤35

boxs / min

Sample

Mass-produced standard products. For example, a standard hard-shell office folder; or the base for a desk calendar that is produced in high volumes.

Tags: All-in-One Case Maker Inline Lining Machine Photoelectric Positioning Case Maker High Stability Case Maker High Volume Case Maker Automatic Lined Cover Machine Case Making and Lining Machine

Benefits Product Advantage Technical Parameters

Downloads

Benefits

It can automatically feed and glue paper, delivery and position cardboard, and fold four sides in one process; there are features of accurate and quick positioning, and beautiful finished products etc. It is used to make hardcovers, notebook covers, desk calendars, hanging calendars, book-type boxes, fles and irregular covers etc.

Product Advantage

1 Rear Suction Paper Feeder

Patented rear suction paper feeder with independent servo control for paper feeding, simple and easy to maintain.

2 Ultrasonic Double-sheetInspection

Ultrasonic double-sheet paper detection can effectively prevent double-sheet paper and reduce waste products.

3 High-precision Photoelectric Positioning

High-precision photoelectric positioning, photoelectric tracking and detection, servo correction to ensure positioning accuracy.

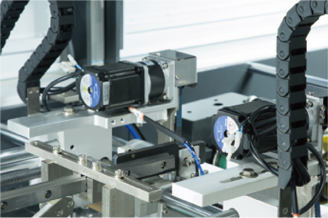

4 Trimming Of Motor Parts[Model A]

Trimming controlled by stepper motor, adjustable,faster and more accurate.

Technical Parameters

Model	CMD450
Paper Size[A×B]	Min. 110×210mm Max. 480×830mm
Case Size[W×L]	Min. 80×180mm Max.450×800mm
Paper Thickness	100-300g/m²
Cardboard Thickness	1-4mm
Min.Spine Width[S]	7mm
Folding Size	10-18mm
Cardboard Qty	6pieces
Precision	±0.05mm
Speed	≤35sheets/min
Motor Power	20kw/380v 3phase
Electric Heating Power	24kw
Air Supply	55L/min 0.6Mpa
Machine Weight	6200kg
Machine Dimension	L10400×W4300×H1800mm
Paper Wrap Type	1/2/3/4/5/6/7/8

Remark

1.The max and mini sizes of the covers are subjected to the size and the quality of the paper.

2.The speed of the machine depends on the sizes of the covers.

3.We don't provide air compressor.
