CB600A

Automatic Hardcover/Case Making Machine

CB600A Automatic Case Maker (Visual Positioning)

The flexible, high-precision solution. The CB600A uses Visual Positioning (CCD) and One-key Adjustment for rapid, accurate setup.

Its unique folding structure (Front Tucking + Rear Irregular Lifting Plate) makes it the perfect choice for producing high-end hard covers with a single irregular-shaped edge.

Core Tech: Visual Positioning (CCD) for high accuracy.

Key Feature: Handles single-side irregular shapes and all standard covers.

Benefit: Ideal for creative, custom book covers and premium packaging.

Maximum speed of

≤35

boxs / min

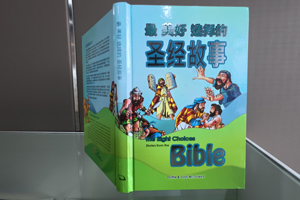

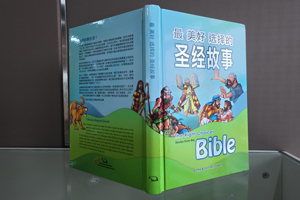

Sample

Specially shaped covers. For example, a children's board book cover with a semi-circular top; or a custom notebook cover with a special curve on one edge.

Tags: Visual Positioning Case Maker Single Side Irregular Case Maker Shaped Cover Machine Irregular Edge Folding Machine CCD Case Maker One-key Adjustment Case Maker

Benefits Product Advantage Technical Parameters

Downloads

Benefits

It can automatically feed and glue paper, delivery and position cardboard, and fold four sides in one process; there are features of accurate and quick positioning, and beautiful finished products etc. It is used to make hardcovers, notebook covers, desk calendars, hanging calendars, book-type boxes, fles and irregular covers etc.

Product Advantage

1 Rear Suction Paper Feeder

Patented rear suction paper feeder with independent servo control for paper feeding, simple and easy to maintain.

2 Stainless steelchrome-plated roller

The top rubber roller is all made offinely ground stainless steel chromeplated roller, which is more durableby using the line contact scraper.

3 High-precision Photoelectric Positioning

High-precision photoelectric positioning, photoelectric tracking and detection, servo correction to ensure positioning accuracy.

4 Trimming Of Motor Parts[Model A]

Trimming controlled by stepper motor, adjustable,faster and more accurate.

Technical Parameters

Technical Parameter	CM600A	CM600A Pro
Paper Size (A×B)	Min: 130×230mmMax: 630×1430mm	Min: 130×230mmMax: 620×1430mm
Case Size (W×L)	Min: 120×220mmMax: 600×1400mm	Min: 130×230mmMax: 600×1400mm
Inner Paper Size (W×L)	Min: 120×220mm	(Not specified in image)
Paper Thickness	100~300g/m²	100~300g/m²
Cardboard Thickness	1~4mm	1~4mm
Spine Width (S)	≥7mm	≥7mm
Folding Size	10~18mm	10~18mm
Cardboard Qty	6pcs	6pcs
Precision	±0.1mm	±0.05mm
Speed	≤35sheets/min	≤35sheets/min
Motor Power	12kw/380v 3phase	12kw/380v 3phase
Electric Heating Power	12kw	12kw
Air Supply	30L/min 0.6Mpa	30L/min 0.6Mpa
Machine Dimension	L9500×W2600×H1700mm	L9560×W2350×H1700mm
Machine Weight	3900kg	3900kg
Cover Type	1/2/3/4/5/6/7/8	1/2/3/4/5/6/7/8

Remark

1.The max and mini sizes of the covers are subjected to the size and the quality of the paper.

2.The speed of the machine depends on the sizes of the covers.

3.We don't provide air compressor.
