CM600S

Automatic Hard Cover Lining Machine

CM600S Automatic Hard Cover Lining Machine

A high-speed, high-precision automatic lining machine, now featuring one-key adjustment for rapid setup and user-friendly operation.

Speed: Up to 38 pcs/min

Max. Size: 600 x 1000 mm

Key Advantages: High precision, labor-saving, and exquisite finished products

Ideal Partner: The perfect supporting equipment for an automatic case maker

Applications: Widely used for the lining process of hard covers, notebooks, folders, calendars, and gift boxes.

Maximum speed of

≤38

boxs / min

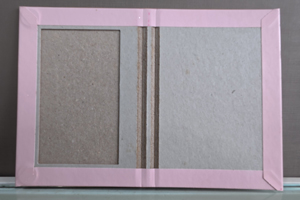

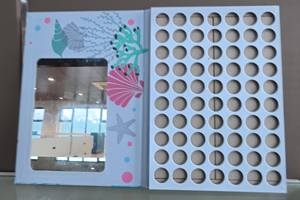

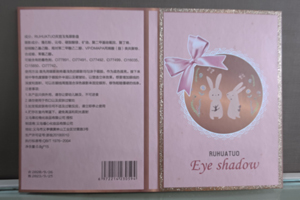

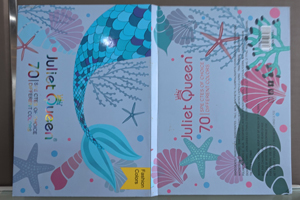

Sample

It doesn't make the outer case, but the inside of the product. For example, the smooth paper you see on the inside lid of a high-end cosmetic box, or the pastedown endpaper (inner lining) of a hardcover book.

Tags: Hard Cover Lining Machine Cover Lining Machine Cover Lining / Pasting Hard Cover Making Notebook Cover Folder Making Gift Box Inner Lining Hard Book Case

Benefits Product Advantage Technical Parameters

Downloads

Benefits

It can automatically feed and glue paper, delivery and position cardboard, and fold four sides in one process; there are features of accurate and quick positioning, and beautiful finished products etc. It is used to make hardcovers, notebook covers, desk calendars, hanging calendars, book-type boxes, fles and irregular covers etc.

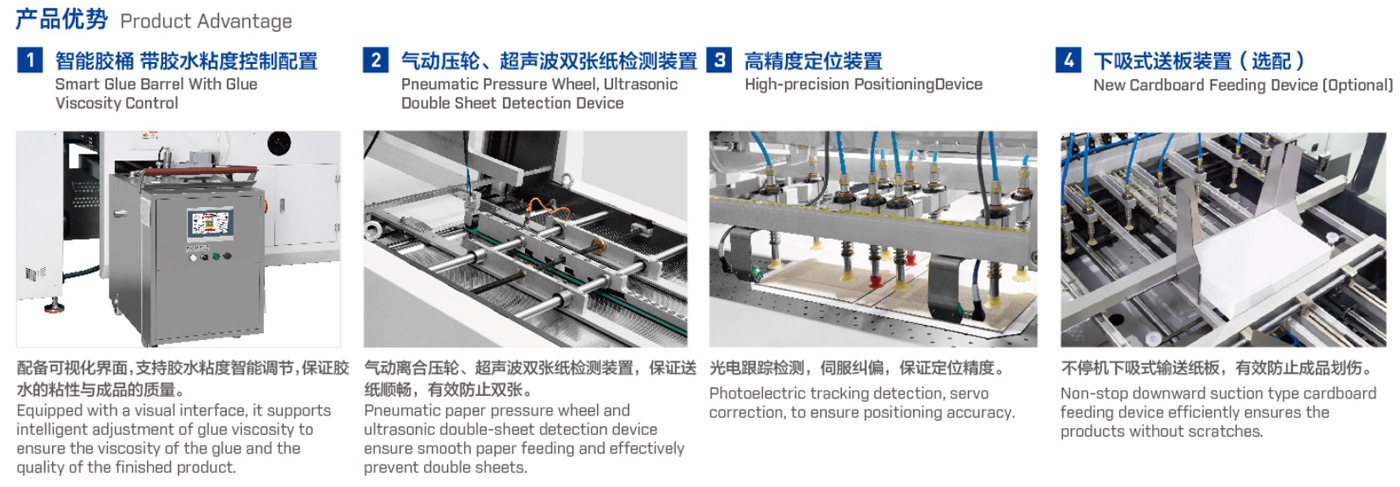

Product Advantage

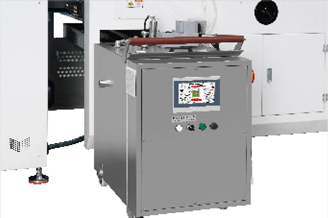

1 Smart Glue Barrel With Glue Viscosity Control

Equipped with a visual interface, it supports intelligent adjustment of glue viscosity to ensure the viscosity of the glue and the quality of the finished product.

2 Pneumatic Pressure Wheel, Ultrasonic Double Sheet Detection Device

Pneumatic paper pressure wheel and ultrasonic double-sheet detection device ensure smooth paper feeding and effectively prevent double sheets.

3 High-precision Positioning Device

Photoelectric tracking detection, servo correction, to ensure positioning accuracy.

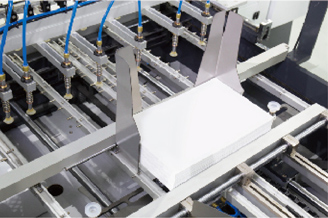

4 New Cardboard Feeding Device (Optional)

Non-stop downward suction type cardboard feeding device efficiently ensures the products without scratches.

Technical Parameters

Model	CM600S
Case Size[W×L]	Min. 100×200mm Max. 600×1000mm
Paper Thickness	100-300g/m²
Cardboard Thickness[T]	0.8-4mm
Precision	±0.05mm
Speed	≤38pcs/min
Motor Power	9kw/380v 3phase
Electric Heating Power	12kw
Air Supply	10L/min 0.6Mpa
Machine Dimension	L6928×W2350×H1700mm
Machine Weight	2200kg

Remark

1.The max and mini sizes of the covers are subjected to the size and the quality of the paper.

2.The speed of the machine depends on the sizes of the covers.

3.We don't provide air compressor.
