CM300

Intelligent High-Speed Case Maker

CM300 Intelligent High-Speed Case Maker

The ultimate solution for high-speed, complex, and creative covers. The CM300 runs at 55 pcs/min and features advanced One-key Adjustment for rapid, intelligent setup.

This is our most versatile machine, built for maximum flexibility and premium finishing.

Speed: Up to 55 pieces per minute.

Smart: One-key adjustment via HMI.

Total Flexibility (Key Features):

Dual Irregular Plates (for double-shaped edges).

Round Corner capability.

Soft Central Spine (flexible spine) application.

Benefit: A single, high-speed machine for all your most complex and creative cover designs.

Maximum speed of

≤55

boxs / min

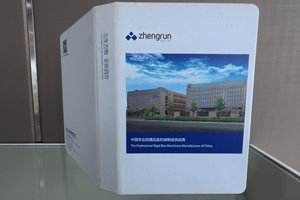

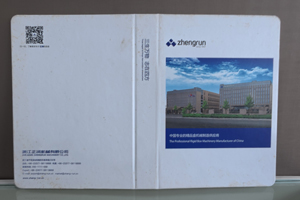

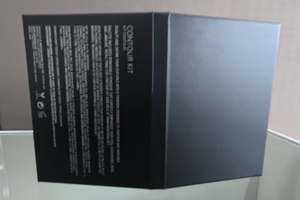

Sample

Special-process covers. For example, a Moleskine-style business notebook with round corners; a premium leather journal with a soft, flexible spine that can lay flat.

Tags: Round Corner Case Maker Flexible Spine Case Maker Soft Spine Case Maker Dual Side Irregular Case Maker High-Speed Case Maker Intelligent Case Maker 55 ppm Case Maker (55 pcs/min Case Maker) One-key Adjustment Case Maker Flexible Case Maker

Benefits Product Advantage Technical Parameters

Downloads

Benefits

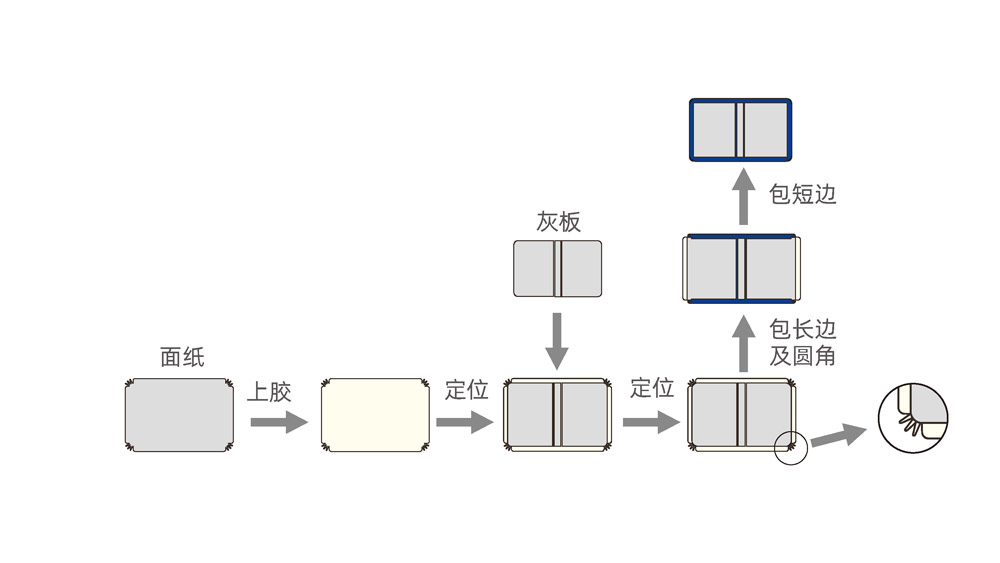

It can automatically feed and glue paper, delivery and position cardboard, and fold four sides in one process; there are features of accurate and quick positioning, and beautiful finished products etc. It is used to make hardcovers, notebook covers, desk calendars, hanging calendars, book-type boxes, fles and irregular covers etc.

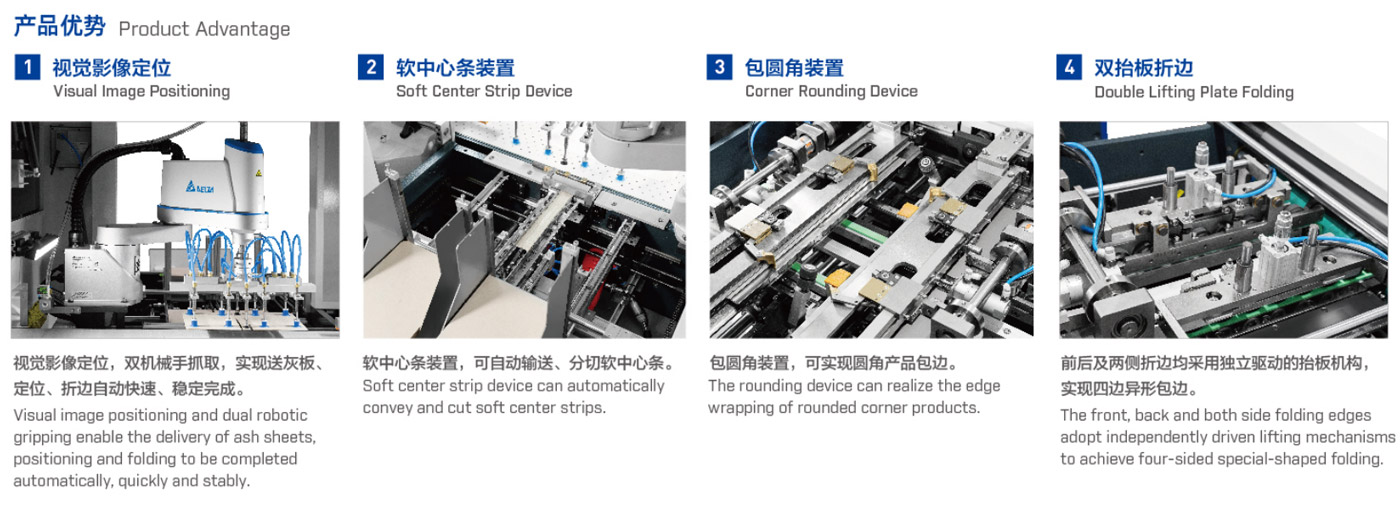

Product Advantage

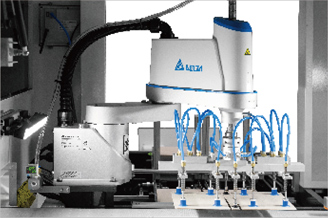

1 Visual Image Positioning

Visual image positioning and dual robotic gripping enable the delivery of ash sheets, positioning and folding to be completed automatically, quickly and stably.

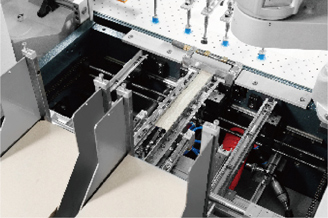

2 Soft Center Strip Device

Soft center strip device can automatically convey and cut soft center strips.

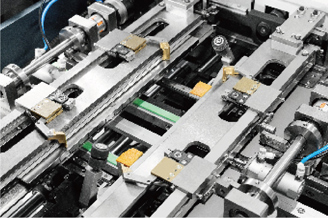

3 Corner Rounding Device

The rounding device can realize the edge wrapping of rounded corner products.

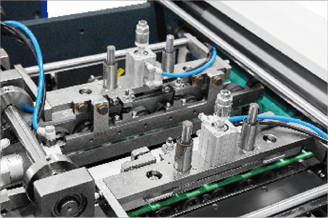

4 Double Lifting Plate Folding

The front, back and both side folding edges adopt independently driven lifting mechanisms to achieve four-sided special-shaped folding.

Technical Parameters

Model	CM300
Paper Size(AxB)	Min.70×130mm Max.360×440mm
Drawer Box Forming Dimensions	100-300g/m²
Cardboard Thickness[T]	1-3mm
Case Size	Min.70×130mm Max.320×400mm
Speed	≤55sheets/min
Minimum center strip size	7mm
Fold-in paper edge size (R)	10-18mm
Maximum number of pieces	3pieces
Precision	±0.05mm
Power supply	18kw/380v 3phase
Machine Weight	2750kg
Machine Dimension	L4650×W2100×H2020mm
Air Supply	15L/min 0.6 Mpa
Paper Wrap Type	1/2/3/4/5/6/7/8/9/10
