CB600B

Automatic Case Maker

CB600B Automatic Case Maker (Visual Positioning)

The high-stability, high-precision solution. The CB600B uses Visual Positioning (CCD) and One-key Adjustment for flawless, high-speed production.

Its robust folding structure (Front Tucking + Standard Straight Lifting Plate) is optimized for standard, straight-edge hard covers.

Core Tech: Visual Positioning (CCD) for high accuracy.

Key Feature: Dedicated to standard straight-edge covers for maximum stability.

Benefit: The perfect, reliable machine for high-volume book covers and folders.

Maximum speed of

≤35

boxs / min

Sample

The most common, standard rectangular covers. For example, a regular hardcover notebook; a standard hardcover novel case; or the flat lid for a shoe box.

Tags: Visual Positioning Case Maker Straight Edge Case Maker Standard Case Maker High Stability Case Maker CCD Case Maker One-key Adjustment Case Maker

Benefits Product Advantage Technical Parameters

Downloads

Benefits

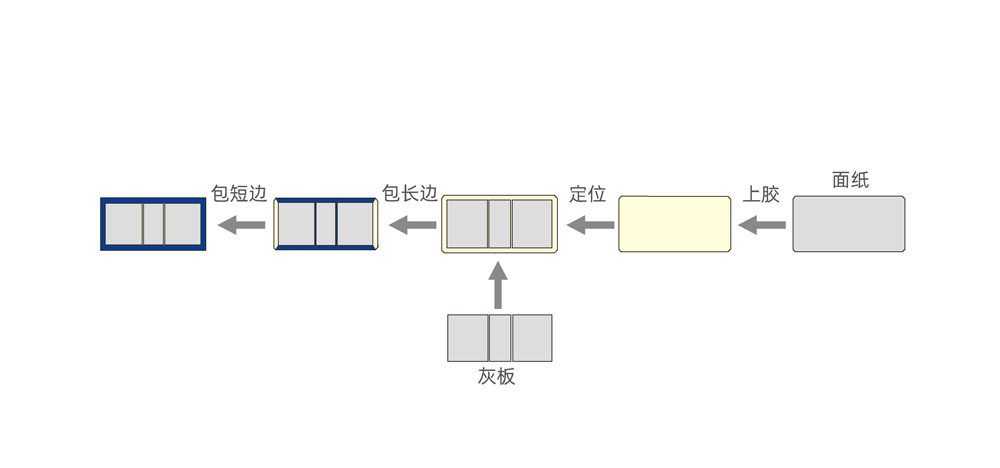

It can automatically feed and glue paper, delivery and position cardboard, and fold four sides in one process; there are features of accurate and quick positioning, and beautiful finished products etc. It is used to make hardcovers, notebook covers, desk calendars, hanging calendars, book-type boxes, fles and irregular covers etc.

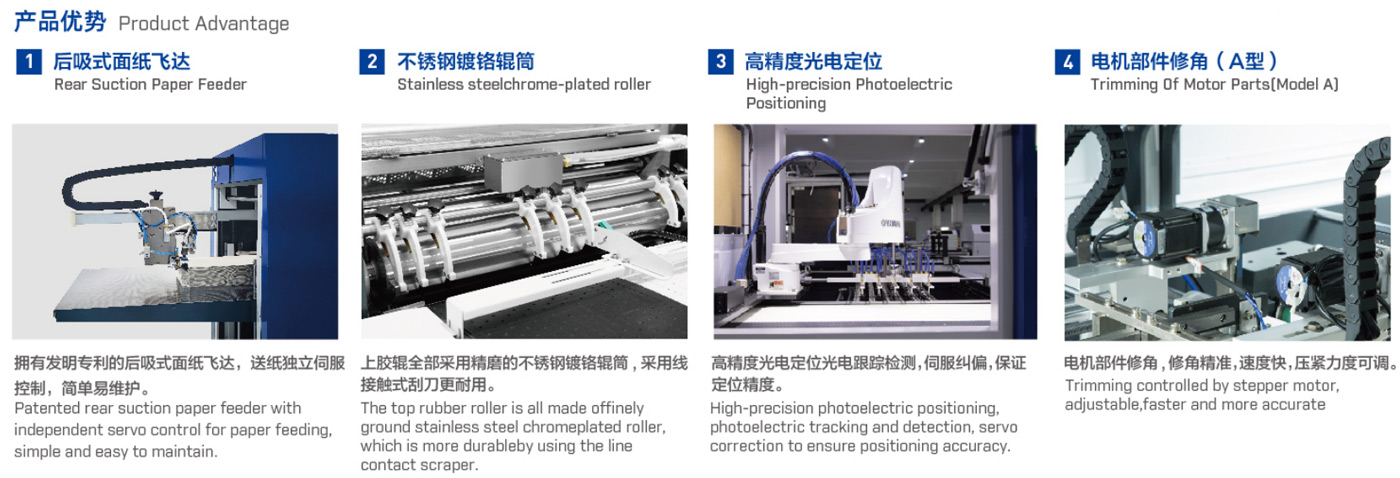

Product Advantage

1 Rear Suction Paper Feeder

Patented rear suction paper feeder with independent servo control for paper feeding, simple and easy to maintain.

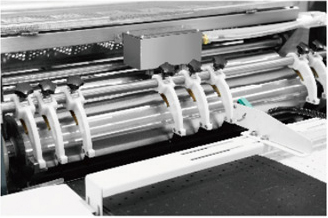

2 Stainless steelchrome-plated roller

The top rubber roller is all made offinely ground stainless steel chromeplated roller, which is more durableby using the line contact scraper.

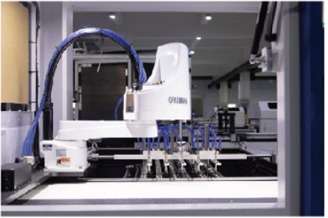

3 High-precision Photoelectric Positioning

High-precision photoelectric positioning, photoelectric tracking and detection, servo correction to ensure positioning accuracy.

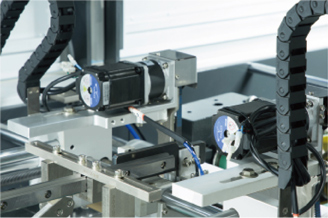

4 Trimming Of Motor Parts[Model A]

Trimming controlled by stepper motor, adjustable,faster and more accurate.

Technical Parameters

Model	CB600B
Face paper size	Min. 130×230mm
Face paper size	Max. 620×1030mm
Case Size[W×L]	Min. 100×200mm
Case Size[W×L]	Max. 580×1000mm
Top paper thickness	100-300g/m²
Cardboard thickness	1-4mm
Minimum size of center bar	7mm
Folded edge size	10-18mm
Maximum number of slices	6pieces
Positioning accuracy	±0.05mm
Production speed	≤35sheets/min
Motor power	12kw/380v 3phase
Electrothermal power	12kw
Air source requirements	30L/min 0.6Mpa
Machine weight	3820kg
Overall size	B:11100×2300×2000mm
Paper Wrap Type	1/2/3/5/6/7

Remark

1.The max and mini sizes of the covers are subjected to the size and the quality of the paper.

2.The speed of the machine depends on the sizes of the covers.

3.We don't provide air compressor.
