It is used to make hardcovers, notebook covers, desk calendars, hanging calendars, book-type boxes, files and rregular covers etc.

Tags: Case Maker Machine Automatic case maker machine Automatic Hard Cover Case Making Machine

Benefits Product Advantage Technical Parameters

Downloads

Benefits

It can automatically feed and glue paper, delivery and position cardboard, and fold four sides in one process; there are features of accurate and quick positioning, and beautiful finished products etc. It is used to make hardcovers, notebook covers, desk calendars, hanging calendars, book-type boxes, fles and irregular covers etc.

1. Automatic delivery of paper glue.

2. Cardboard automatic transmission positioning fit.

3. Four edges folding edge molding (folding shaped cover)

4. Friendly graphical man-machine interface, all the failure of the computer are displayed.

5. The integrated safety cover is designed according to the European CE standard, which is safer and more humanized.

Product Advantage

1 Rear Suction Paper Feeder

Patented rear suction paper feeder with independent servo control for paper feeding, simple and easy to maintain.

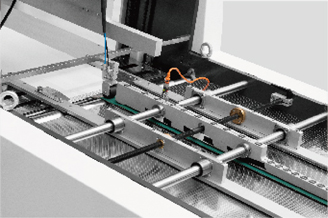

2 Pneumatic Pressure Wheel, Ultrasonic Double Sheet Detection Device

Pneumatic paper pressure wheel and ultrasonic double-sheet detection device ensure smooth paper feeding and effectively prevent double sheets.

3 High-precision Positioning Device

Photoelectric tracking detection servo deviation correction to ensure positioning accuracytt.

4 Trimming Of Motor Parts[Model A]

Trimming controlled by stepper motor, adjustable,faster and more accurate

Technical Parameters

Model	CM600A
Case Size (W×L)	MIN: 120×220mm
Case Size (W×L)	MAX: 600×1400mm
Paper Size (A×B)	MIN: 130×230mm
Paper Size (A×B)	MAX: 630×1430mm
lnner Paper Size (W×L)	Min.120x220mm
Paper Thickness	100~300g/m²
Cardboard Thickness	1~4mm
Spine Width (S)	≥7mm
Folding Size	10~18mm
Cardboard Qty	6pcs
Precision	±0.1mm
Speed	≤35sheets/min
Motor Power	12kw/380v 3phase
Electric Heating Power	12kw
Air Supply	30L/min 0.6Mpa
Machine Dimension	L9500×W2600×H1700mm
Machine Weight	3900kg
Cover Type	1/2/3/4/5/6/7/8

Remark

1.The max and mini sizes of the covers are subjected to the size and the quality of the paper.

2.The speed of the machine depends on the sizes of the covers.

3.We don't provide air compressor.
