CB600CR

Dual-Purpose Manipulator Positioning Machine

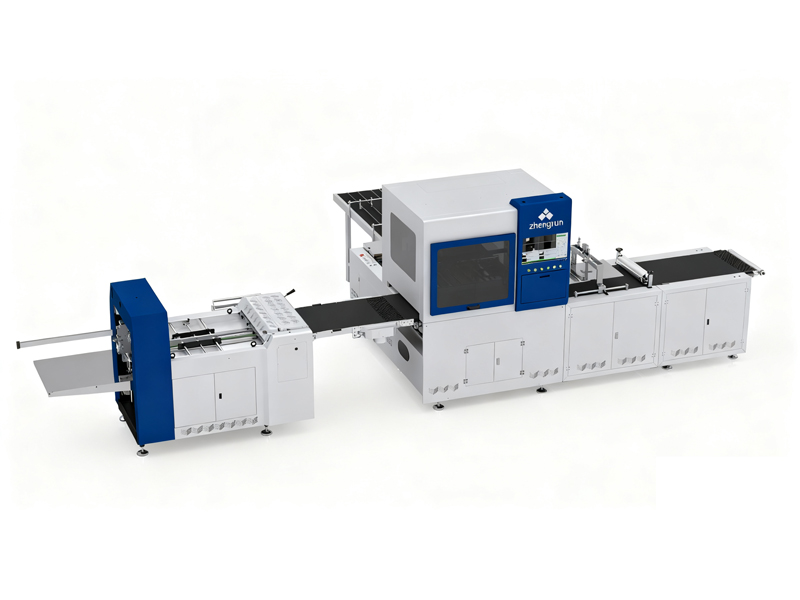

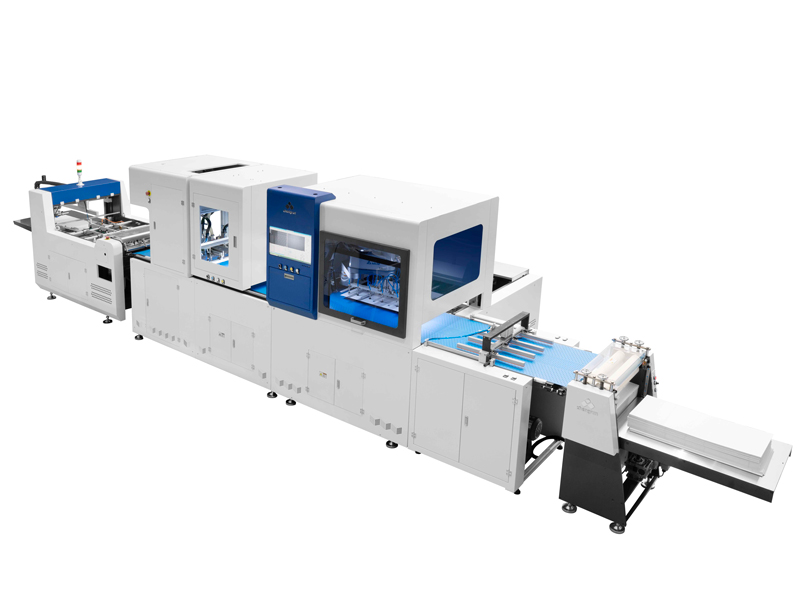

CB600CR Dual-Purpose Manipulator Positioning Machine

The ultimate flexible, high-precision solution. This machine uses an advanced robotic arm (manipulator) for ultra-high precision positioning.

Its true dual-purpose design allows it to perfectly spot both rigid boxes AND hard covers (cases)

Key Feature: Ultra-high precision robotic arm spotting (±0.05mm).

Smart: One-key adjustment enables rapid changeover between box and cover jobs.

Benefit: Replaces two machines with flawless quality, saving investment and labor.

Applications: Essential for all high-end rigid boxes and premium book covers.

Maximum speed of

≤35

boxs / min

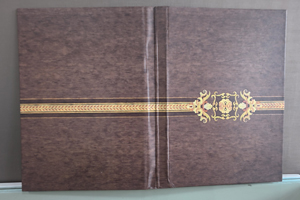

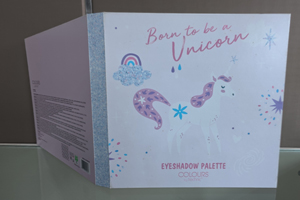

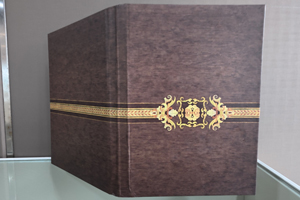

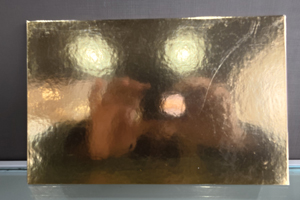

Sample

Luxury packaging requiring extreme precision. For example, the base of a luxury watch box, or the outer case for a very expensive limited-edition book.

Tags: Manipulator Positioning Machine Robotic Arm Spotter Dual-Purpose Spotting Machine Box and Cover Spotter Ultra-High Precision Spotter (0.05mm) Robotic Spotter

Benefits Product Advantage Technical Parameters

Downloads

Benefits

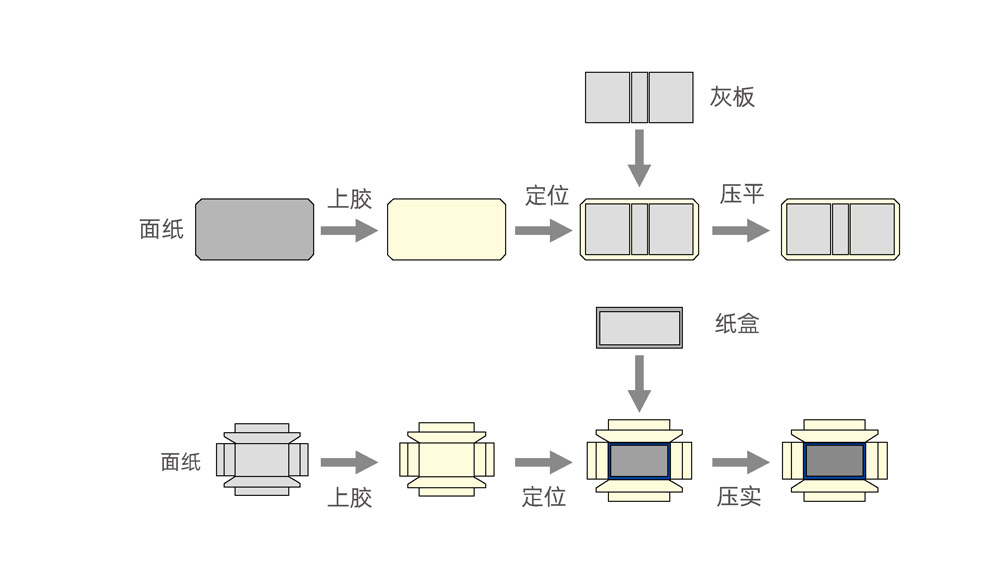

It can automatically feed and glue paper, delivery and position cardboard, and fold four sides in one process; there are features of accurate and quick positioning, and beautiful finished products etc. It is used to make hardcovers, notebook covers, desk calendars, hanging calendars, book-type boxes, fles and irregular covers etc.

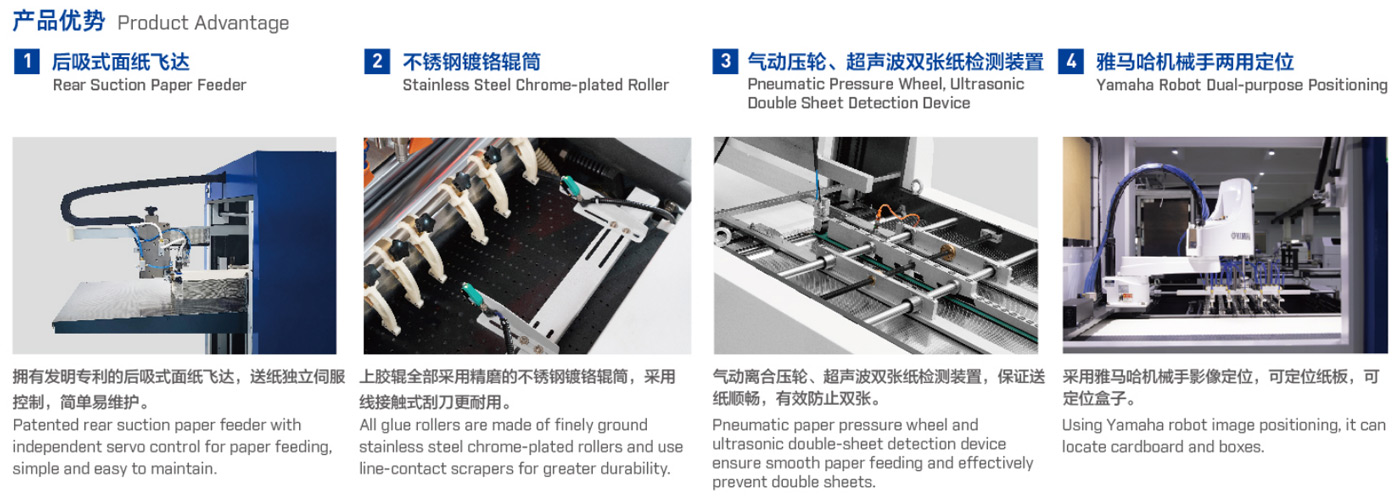

Product Advantage

1 Rear Suction Paper Feeder

Patented rear suction paper feeder with independent servo control for paper feeding, simple and easy to maintain.

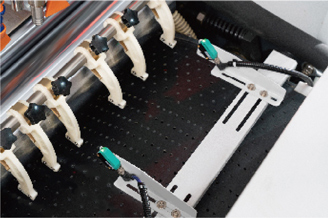

2 Stainless Steel Chrome-plated Roller

All glue rollers are made of finely ground stainless steel chrome-plated rollers and use line-contact scrapers for greater durability.

3 Pneumatic Pressure Wheel, Ultrasonic Double Sheet Detection Device

Pneumatic paper pressure wheel and ultrasonic double-sheet detection device ensure smooth paper feeding and effectively prevent double sheets.

4 Yamaha Robot Dual-purpose Positioning

Using Yamaha robot image positioning, it can locate cardboard and boxes.

Technical Parameters

Model	CB600CR
Paper Size[W×L]	Min. 130x230mm Max. 620x1030mm
Case Size[W×L]	Min. 100x200mm Max. 580x1000mm
Box Size[W×L]	Min. 50x100mm Max. 360x480mm
Box Height[H]	10-120mm
Paper Thickness	100-300g/m²
Cardboard Thickness[T]	1-4mm
Precision	±0.05mm
Speed	≤35pcs/min
Motor Power	8kw/380v 3phase
Electric Heating Power	12kw
Air Supply	10L/min 0.6Mpa
Machine Dimension	L8650xW2370xH2000mm
Machine Weight	2200kg

Remark

1.The max and mini sizes of the covers are subjected to the size and the quality of the paper.

2.The speed of the machine depends on the sizes of the covers.

3.We don't provide air compressor.
