PortuguêsImage positioning and robotic arm clamping box achieve high-precision positioning.
Automatic Rigid Box marker is a good equipment for making high-grade boxes which is featured by fne design, reliable performances and international advanced technologies. It employs PLC, photoelectric detector system, hydraulic rectifying system, HMI to automatically finish feeding and gluing paper, conveying cardboard, forming and gluing four angles of cardboard, positioning and forming box in one time, instead of manual production, greatly improving the production effciency and quality of rigid boxes.
≤45
boxes/min
It is applicable to make high-grade boxes for cell phones, shoes, cosmetics, shirts, moon cakes, liquors, cigarettes, teas, etc.
This fully automatic rigid box forming machine is the ideal equipment for producing high-end, high-quality rigid boxes with lids and tops. It features a rational design, reliable performance, and world-class technology. It utilizes a PLC programmable controller, photoelectric tracking/image positioning system, pneumatic system, and touch-screen human-machine interface. It automatically feeds wrapping paper, glues wrapping paper, conveys cardboard, forms and tapes the corners, positions and fits the paperboard, and completes the rigid box forming process in one operation, effectively replacing manual labor and significantly improving production efficiency and the quality of finished rigid boxes. It is suitable for producing high-end rigid boxes for mobile phones, shoe boxes, cosmetics boxes, shirt boxes, moon cake boxes, wine boxes, cigarette boxes, tea boxes, and other high-end packaging.
1) Full automatic feeder of paper.
2) Hot melt adhesive automatic circulation, mixing and gluing system (glue viscosity system can be selected).
3) The hot melt adhesive tape automatic conveying and sltting device can complete the corner pasting of the cardboard inner box at one time.
4) A vacuum suction fan is arranged below the conveyor belt to control the glued paper without relative deviation.
5) The hydraulic and pneumatic deviation correction device is adopted for the inner box of coated paper and paperboard, which can accurately position and fit with a ftting error of ±0.3mm. With Yamaha YAMAHA manipulator image positioning, accuracy ± 0.1mm.
6) The rigid box forming section automatically collects the rigid box to the forming section according to the rigid box conveying condition above the conveyor belt.
7) The continuous operation of the rigid box forming section includes box feeding, edging, ear folding and paper edge folding.
8) The whole machine adopts PL C control, photoelectric tracking system and touch screen human-machine interface to realize the automatic production process of one-time rigid box forming.
9) Automatic fault diagnosis alarm function.
10) The new forming machine can store parameter settings and automatically adjust the machine.
Image positioning and robotic arm clamping box achieve high-precision positioning.

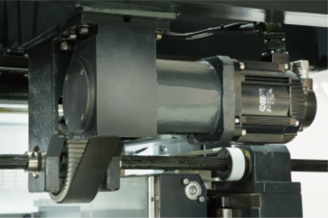

Adopt new design of servo and pneumatic structure to wrap the box, fast digital adjustment of sizes.
The long and short sides of the rigid box are wrapped at the same station, which reduces rigid box turnover and effectively increases the forming speed.
The long and short sides of the rigid box are wrapped at different stations. When the size or shape of the rigid box changes, there is no need to replace the push knife and the pressing strip, and the machine can be adjusted quickly.
| Model | RB185A Max |
| Paper Size[AxB] | Min. 95×180mm |
| Max. 610×850mm | |
| Box Size[WxL] | Min 30×60mm |
| Max. 400×600mm | |
| Box Height[H] | 10-185mm |
| Turn In Depth[R] | 10-100mm |
| Folded ear size | 10-100mm |
| Cardboard Thickness[T] | 0.8-3mm |
| Paper Thickness | 100-400g/m² |
| Paper Stacking Height | 800mm |
| Gray board stacking height | 1100mm |
| Precision | ±0.05mm |
| Speed | ≤45pcs/min |
| Motor Power | 20kw/380v 3phase |
| Electric Heating Power | 12kw |
| Air Supply | 50L/min 0.6Mpa |
| Machine Dimension | L7000×W5000×H3300mm |
| Machine Weight | 6300kg |
1.Size Range 0f Double-sided Folded Ear Cover Paper And Gray Plate
2.Size Range Of Cover Paper And Grey Board For Book Cover Boxes [T-type Boxes]
3.Size Range Of Butt-jointed Top And Bottom Cover Paper And Grey Board
4.Size Range Of Beveled Edge Cover Paper And Gray Plate
5.Size Range Of Diagonal Beveled Top And Bottom Cover Paper And Gray Plate
1.The Max. and Min. sizes of the boxes are subjected to the sizes and quality of the paper.
2.The speed of the machine depends on the sizes of the boxes.
3.We don't provide air compressor.
W+2H-4T≤C(Max)
A(Min)≤W+2H+2T+2R≤A(Max)
L+2H-4T≤D(Max)
B(Min)≤L+2H+2T+2R≤B(Max)
